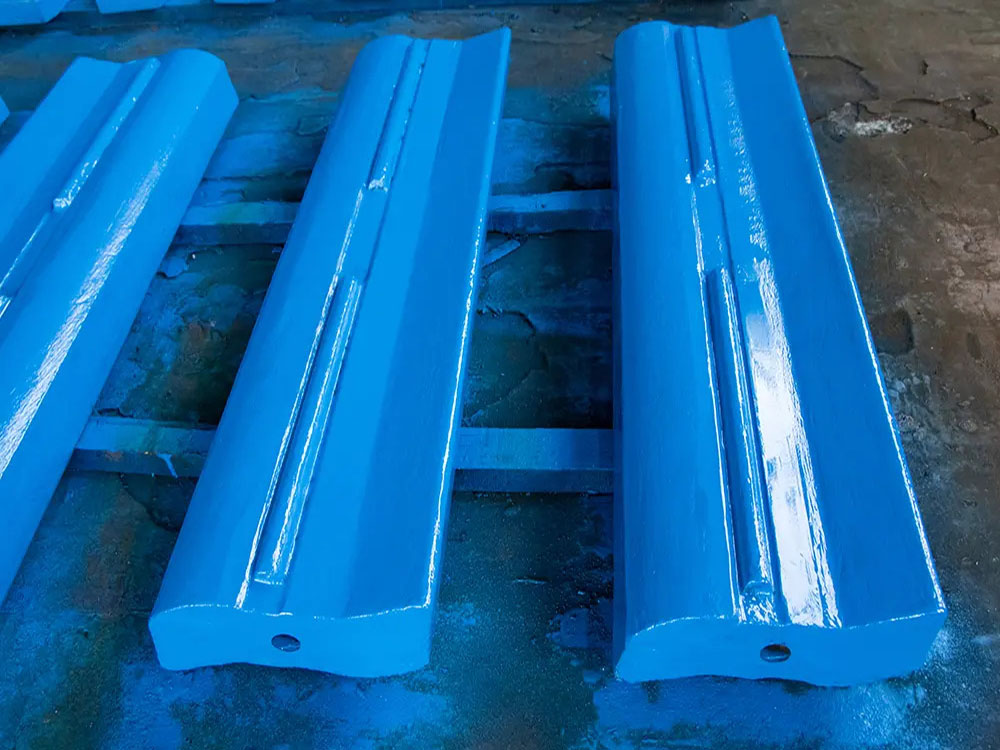

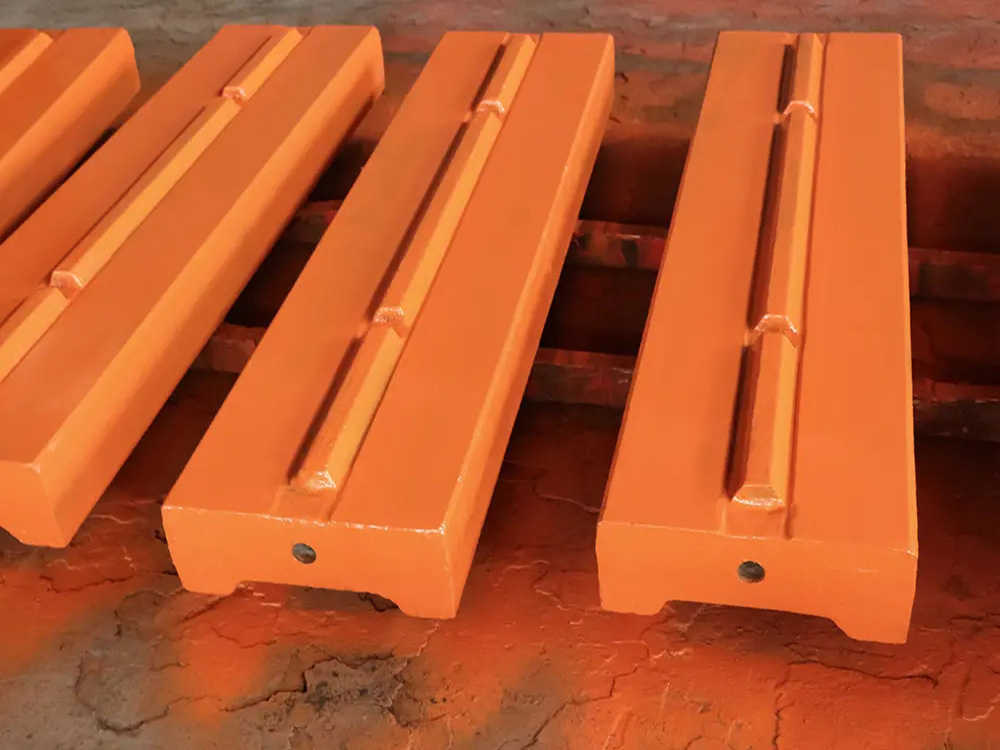

Impact crusher accessories hammer plate

Impact crushers are one of the most widely used crushing equipment types. Impact crusher parts are a crucial component and require periodic replacement; they are also known in the industry as wear parts.

Wear parts of impact crushers include impact hammers, impact blocks, impact plates, impact liners, impact square steel, and impact clamping blocks. These parts are all cast or forged from wear-resistant materials such as high-manganese steel, high-chromium steel, and high-manganese composites.

As the main equipment for producing concrete aggregates, highway, railway, and urban construction waste, the main wear-resistant parts of impact crushers are the hammers and liners.

Our company's high-chromium alloy hammers and liners have been used in thousands of impact crushers in dozens of countries and regions in Europe, South America, the Middle East, Africa, and North America. They have won the trust and praise of our customers due to their high hardness, wear resistance, and high toughness. Our company's hammer plates and liners are primarily made of high-chromium alloy casting, specially processed and suitable for various solutions. After quenching and tempering heat treatment, they possess an optimal microcrystalline structure and sufficient toughness, with a hardness reaching HRC60 or higher.

High-chromium hammer plates:

High-chromium hammer plates utilize the most advanced nanotechnology currently available in China, improving the cost-effectiveness of cast wear-resistant materials by 1-2 times compared to the most advanced materials currently available. Through super alloying and advanced smelting technology, we produce semi-solid extruded hypereutectic high-chromium hammer plates, extending their lifespan by 50-100% compared to traditional high-chromium hammer plates. Compared to similar imported products, Hongfei Machinery's high-chromium hammer plates offer advantages such as high safety, strong wear resistance, and low price, with significantly shorter delivery times.

High-manganese steel hammer plates :

High-manganese steel hammer plates are cast from modified high-manganese steel with a rationally proportioned composition, making the hammer plates safer and more reliable. Their wear resistance is 2.5 times higher than ordinary high-manganese steel, reducing downtime, increasing equipment operating rate, increasing crusher output, and reducing material costs per ton, making them highly valuable for widespread adoption.

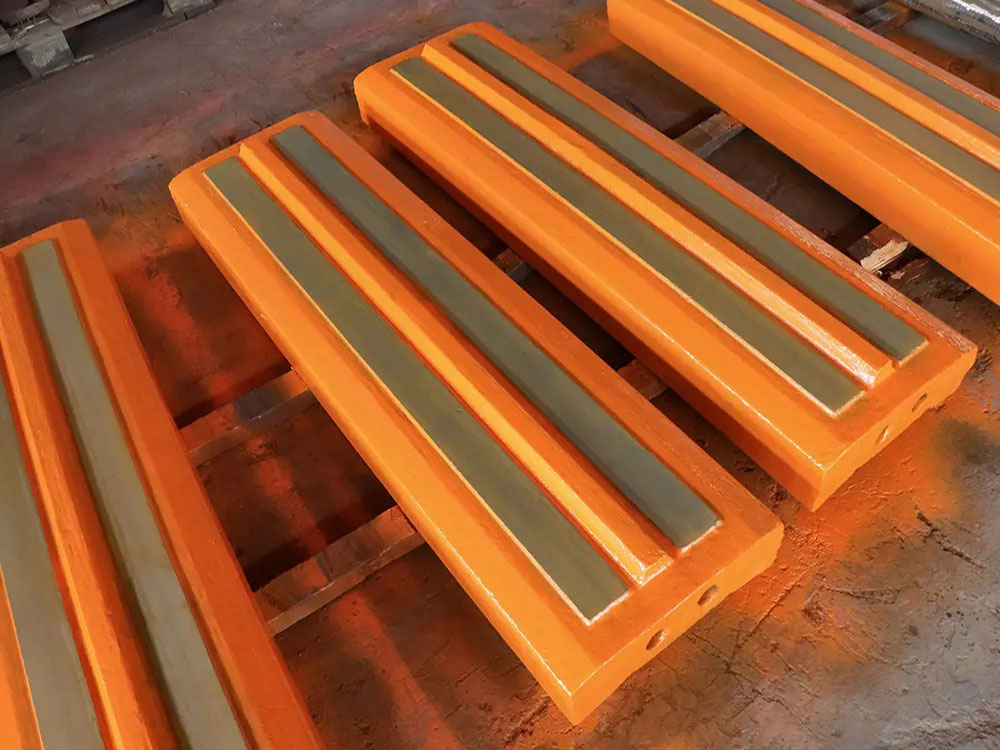

Alloy Hammer Plates:

Manufactured using inlaid wear-resistant alloy technology. To improve wear resistance, traditional hammer plates often have a layer of hard alloy coated on the working surface, but this doesn't offer high wear resistance. Yusheng Foundry's alloy hammer plates, however, have a high-manganese steel base with densely cast, extremely strong and tough tungsten-titanium alloy, second only to diamond in hardness, capable of resisting severe abrasive wear.

Composite Hammer Plates:
