Maximizing Efficiency and Lowering TCO in Aggregate Production
In today's aggregate industry, the 500 Tons Per Hour (TPH) crushing plant has become a highly sought-after scale for medium to large mining investments. How should you scientifically configure your equipment based on raw material characteristics? How can you ensure high capacity while minimizing operational costs and wear part replacement expenses?
As a professional supplier of mining machinery and premium aftermarket replacement parts backed by Nordic engineering excellence, Future Green Machinery (FGM) shares deep insights into the two core configurations for 500 TPH crushing plants and presents a highly successful real-world limestone crushing case.

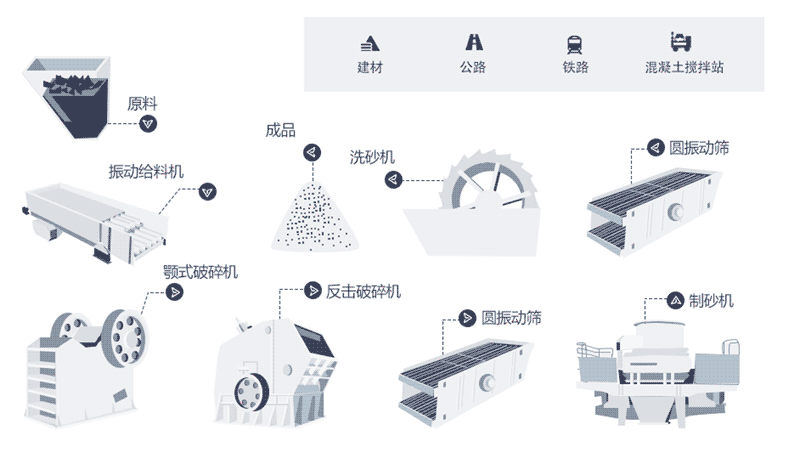

A complete aggregate crushing plant consists of primary crushers, secondary/tertiary crushers, auxiliary equipment (feeders, screens, conveyors), and electrical control systems. Because raw materials vary drastically in hardness and abrasiveness, a "one-size-fits-all" approach does not work.
High-hardness rocks cause severe wear and tear on equipment. If conventional impact crushers are used, the lifespan of wear parts will be drastically reduced. The core of this configuration is the powerful combination of a Jaw Crusher + Multi-Cylinder Cone Crusher.
| Equipment Type | Core Parameters | Function & Description |
|---|---|---|
| Vibrating Feeder | Capacity: 800-1200 TPH | Continuous feeding with pre-screening to remove soil and fine impurities. |
| Jaw Crusher | Max Feed: ≤1200mm Capacity: 400-800 TPH |
Primary crusher, efficiently reducing large mined boulders down to ≤300mm. |
| Cone Crusher | Capacity: 450-650 TPH Output: 0-31.5mm |
Core secondary crusher. Uses lamination crushing to easily handle high-hardness materials with minimal wear. |
| Vibrating Screen | Size: 2400×6000mm Capacity: 600 TPH/unit |
High-efficiency grading, classifying materials into four finished aggregate sizes. |
For less abrasive rocks, the focus shifts to cost-effectiveness, large crushing ratios, and high cubical aggregate shapes. The Jaw Crusher + Impact Crusher combination is the undisputed golden standard here.
| Equipment Type | Core Parameters | Function & Description |
|---|---|---|
| Jaw Crusher | Capacity: 400-700 TPH | Completes the first stage of crushing for large soft-rock blocks. |
| Impact Crusher | Combined cap: 500+ TPH | Renowned for excellent shaping capabilities, producing highly cubical aggregates with minimal flakiness. |
| 4-Deck Screen | Capacity: 500-800 TPH/unit | Accurately screens out multiple commercial sizes (e.g., 0-5mm, 5-10mm, 10-20mm) simultaneously. |
In mining operations, buying the right equipment is only the first step. Long-term Total Cost of Ownership (TCO) is the ultimate factor determining profitability. Future Green Machinery understands this critical need:
Whether you run FGM crushers or existing lines from Metso, Sandvik, or Terex, we supply 100% traceable, engineering-verified wear parts (mantles, bowl liners, bronze bushings) that deliver OEM performance at a 40-60% cost savings.
Backed by our massive smart inventory and former OEM engineering team, we dispatch critical replacement parts worldwide within 68 hours—eliminating catastrophic downtime and maximizing your crushing output.
Consult our Nordic Engineering Team today for layout designs or a quick parts quote.
